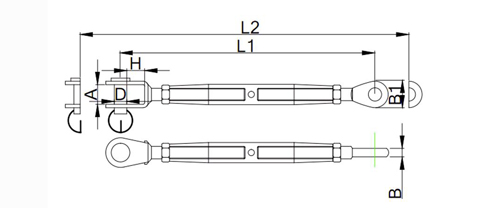

Art. No.

Thread Size

A
mm

D
mm

H
mm

B
mm

B1
mm

L1
mm

L2
mm

KG/100

B.L.KG.

ZK01-0111-0005

M5

6.5

5

10

3

12

130

190

4.2

800

ZK01-0111-0006

M6

7.5

6

10

4

14

145

215

6.3

1250

ZK01-0111-0008

M8

11

8

11

5

17

165

240

13

2350

ZK01-0111-0010

M10

12

9

14

6

22

190

280

22

3500

ZK01-0111-0012

M12

14

12

20

8

25

235

350

44

5100

ZK01-0111-0014

M14

15

12

22

9

28

260

380

60

5900

ZK01-0111-0016

M16

17

16

26

10

31

295

435

85.5

8000

ZK01-0111-0020

M20

20

19

30

15

40

345

495

169

13000

ZK01-0111-0022

M22

30

22

46.5

18

47

445

625

398

17000

ZK01-0111-0024

M24

30

25

49

20

53

508

740

580

20000

ZK01-0111-0027

M27

34

28

54

25

65

565

800

710

25500

ZK01-0111-0030

M30

40

32

62

30

70

620

875

991

31000

ZK01-0111-0036

M36

44

36

70

30

80

675

945

1288

43000
